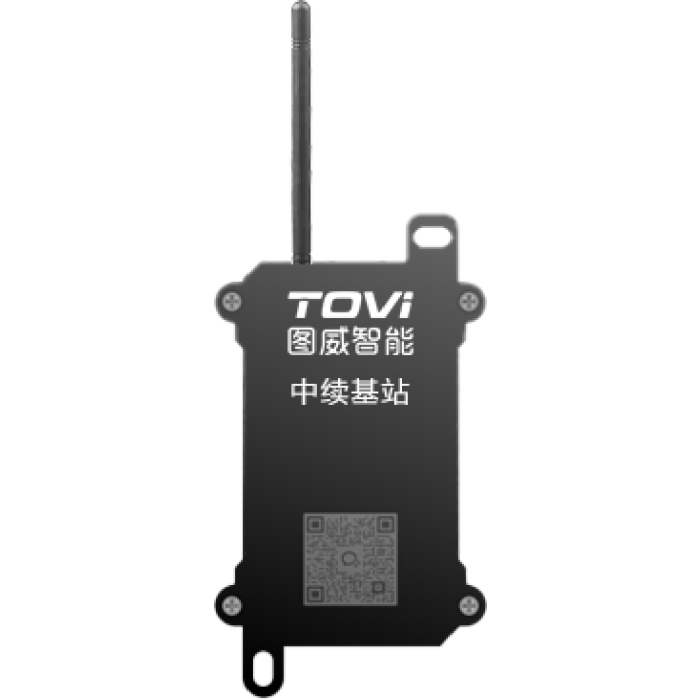

| 中继基站基本参数 Basic parameters for relay base station | |||
| 品牌Brand | TOVI图威 | ||
| 型号Model | TV-DWTB01 | ||
| 材质Material | PC | ||
| 颜色Color | 黑色/ Black | ||
| 尺寸（L*W*H）Measurements | 181*93*41mm | ||
| 防护等级 Protection level | 可户外使用/IP67 (Allowed to be used outdoors) | ||
| 电池Battery | 76000mah | ||
| LED | 三色状态灯 Tri color status light | ||
| OTA | 支持 Available | ||
| 蜂鸣器 Buzzer | 支持 Available | ||
| 安装方式 Installation method | 螺丝/扎带 Screws/ Zip ties | ||
| 技术参数 Technical parameters | |||
| 芯片 Chip | 自研定位芯片 Self-developed positioning chip | ||
| 工作频段 Operating frequency band | 2.4G | ||
| 传输距离 Transmission distance | 50米 meters | ||
| 主要功能 Main functions | |||
| 扩展信号覆盖范围、增强传输质量，用于楼宇内作业面基站信号中继。 Expand signal coverage range, enhance transmission quality, used for signal relay of base stations in building work areas. | |||
