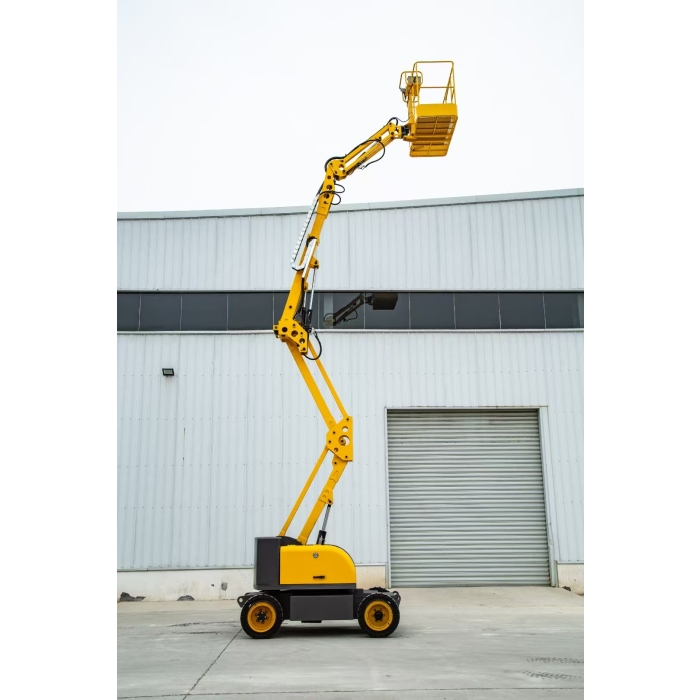

8m Diesel Articulated Boom Product Configuration List
No.
Project
Parameter
1
Maximum working height
10.5m
2
Maximum platform height
8.5m
3
Maximum operating radius
5.5m
4
Maximum span height
4.6m
5
Maximum load
200kg
6
Diesel engine model
Yunnei 490 type
7
Diesel engine power
4 cylinders 35kw
8
Drive type
hydraulic motor drive
9
Workbench size
1.53*0.78m
10
Maximum overall dimensions
5.55*1.65*2.26m
11
Height of workbench from ground after
retraction
520mm
12
Wheelbase
1907mm
13
Track width
1440mm
14
Number of booms
3 sections (the third section is
a telescopic arm)
15
Boom swing
≤0.5%
16
Flying boom range
-60°/+70°
17
Travel speed (retracted state)
4.3km/h
18
Travel speed (raised state)
＜0.8km/h
19
Maximum allowable chassis angle
1.5°/3°
20
Gradability
25%
21
Drive steering mode
Rear wheel drive,
front wheel steering
22
Minimum turning radius
Outer wheel 4.2m,
inner wheel 2.4m
23
Turntable rotation angle
360° continuous
24
Platform rotation angle (optional
function)
±80°
25
Control voltage
24V
26
Tire
28×9-15 solid tire
27
Hydraulic oil tank capacity
120L
28
Fuel tank capacity
30L
29
Equipment weight
5400kg
(Some parameters may be changed according to actual production needs, please refer to the actual production)
