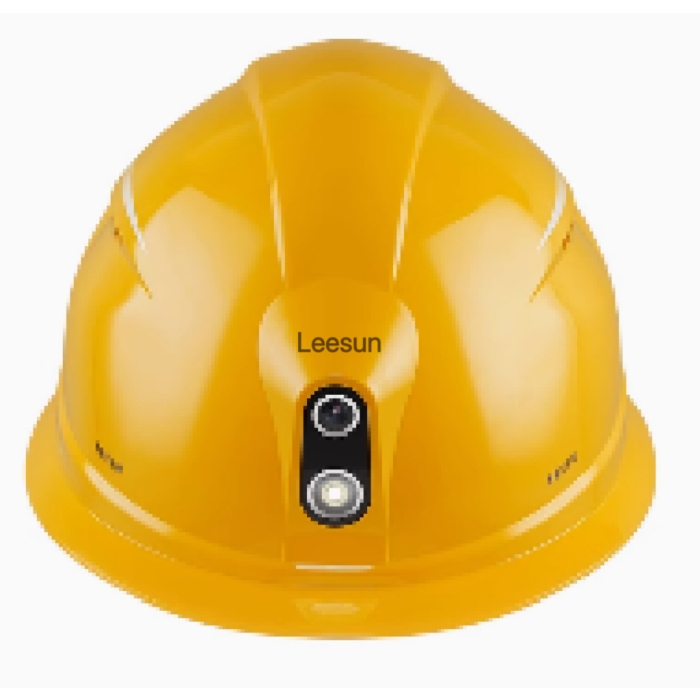

Monitoring Helmet

类型Type

项目Item

输入Input

输出Output

状态相关

State related

开机

Power on

1. 关机状态中

1. Power off

2. 长按电源键按钮开机

2. Press and hold the power button to turn on

1. 系统开机

1. System power-on

2. 向服务器传送安全帽上线报文

2. Send a safety helmet online message to the server

3. 接受服务器确认报文

3. Receive a server confirmation message

关机

Power off

1. 开机状态中

1. Power on

2. 长按开关机按钮关机

2. Power off by pressing and holding the power button

1. 向服务器传送安全帽下线报文

1. Send a helmet offline message to the server

2. 接受服务器确认报文

2. Receive a confirmation message from the server

3. 系统关机

3. Shut down the system

心跳包

Heartbeat packet

开机状态中（每10秒）

Power on (every 10 seconds)

1. 向服务器传送心跳包报文

1. Sends a heartbeat packet to the server.

2. 报文包括：电池电量，电池电压，温度、定位等

2. The packet includes: battery level, battery voltage, temperature, location, etc.

3. 后台可以配置（5秒、10秒、30秒）；（默认10秒状态出货）

3. The back-end can be configured (5 seconds, 10 seconds, 30 seconds); (default is 10 seconds for delivery).

定位信息

Location information

开机状态中（每10秒）

Power on (every 10 seconds)

1. 向服务器传定位坐标报文

1. Send location coordinates to the server.

2. 后台需要具备轨迹回放功能

2. The back-end needs to have a trajectory playback function.

警报相关

Alarm related

温度报警

Temperature alarm

温度超过阈值

Temperature exceeds threshold

安全帽通过扬声器播报温度警报（cpu温度）

The safety helmet broadcasts a temperature alarm (CPU temperature) via a speaker.

脱帽报警

Hat removal alarm

脱帽传感器检测到脱帽

The cap removal sensor detects cap removal

当帽子脱离员工头部之后会发出报警声音信号提醒，脱帽报警时间可以根据不同客户的需求进行不同的时间参数配置

An alarm will sound when the hat is removed from the employee's head. The alarm timing can be configured with different parameters according to different customer needs.

撞击报警

Impact alarm

帽子受到外力撞击时，会发出报警声音信号提醒

The hat will emit an alarm sound when it is hit by an external force

1.   安全帽通过扬声器播报撞击警报

1. The safety helmet broadcasts an impact warning via a speaker

2.    安全帽向服务器发送撞击警报报文

2. The safety helmet sends an impact alarm message to the server

低电报警

Low battery alarm

系统发现电量低

The system detected low battery

1. 低于5%安全帽通过扬声器播报一次低电报警

1. When the battery level drops below 5%, the safety helmet will issue a low battery alarm via loudspeaker

2. 低于1%安全帽持续通过扬声器10分钟播报一次低电报警

2. When the battery level drops below 1%, the safety helmet will continuously broadcast a low battery alarm via loudspeaker every 10 minutes

电子围栏

Electronic fence

支持

Support

1、帽子超出管理者设置的禁止离开区域，后台和帽子同时发出警告提示

1. If the safety helmet exceeds the restricted area set by the administrator, both the control system and the helmet itself will issue a warning.

2、帽子进入管理者设置的禁止进入区域，后台和帽子同时发出警告提示

2. If the safety helmet enters a restricted area set by the administrator, both the control system and the helmet itself will issue a warning.

静默报警

Silent alarm

支持

Support

 当员工帽子静止不动会发出报警声音信号提醒）静默报警时间可以根据不同客户的应用场景进行不同的时间参数配置

An alarm will sound when the employee's safety helmet remains stationary. The silent alarm duration can be configured with different time parameters according to different customer application scenarios.

交互相关

Interaction related

电量查询

Battery level check

用户通过长按SOS键进行查询

Users can perform inquiries by long-pressing the SOS button.

1. 安全帽通过扬声器播报电量百分比（需在线才播报）

1. The safety helmet announces the battery percentage via its speaker (this announcement only works online).

2. 安全帽向服务器发送电量查询记录报文

2. The safety helmet sends a battery status query message to the server.

音量调节

Volume adjustment

用户通过短按音量加减键

Users can press the volume up and down buttons briefly

1. 安全帽响应调整音量

1. The safety helmet responds and adjusts its volume.

2. 安全帽通过扬声器播报调整成果确认

2. The safety helmet announces confirmation of the adjustment via its speaker.

拍照

Photo capture

用户通过短按拍照键

Users can press the shutter button briefly

1. 安全帽拍照

1. The safety helmet takes a photo.

2. 安全帽通过扬声器播报快门声

2. The safety helmet announces the shutter sound via its speaker.

3. 安全帽向服务器发送照片

3. The safety helmet sends the photo to the server.

录像

Video recording

用户通过短按电源键

Users can press the power button briefly.

1. 安全帽开始录像

1. The safety helmet starts recording.

2. 安全帽通过扬声器播报开启录制

2. The safety helmet announces the start of recording via speaker.

3. 收到停止录像指令时播报关闭录制

3. Upon receiving a stop recording command, the safety helmet announces the stop of recording.

4. 安全帽停止录像

4. The safety helmet stops recording.

5. 安全帽将录像保存到到本地，指挥中心根据需要打开后台配置开关上传视频至服务器

5. The safety helmet saves the recording locally. The command center, as needed, enables the background configuration switch to upload the video to the server.

对讲

Intercom

用户长按住对讲按键

Users press and hold the intercom button.

1. 安全帽通过扬声器发出“滴声”提示音

1. The safety helmet emits a "beep" sound through its speaker.

2. 安全帽将用户步话语音发往服务器

2. The safety helmet transmits the user's walking audio to the server.

LED灯

LED light

用户通过短按照明键

Users can press the lighting key briefly.

LED灯打开或者关闭

LED lights on or off

激光灯

Laser light

用户通过长按照明键

Users can long press the lightning key.

激光灯打开或者关闭

Laser light on or off

视频通话

Video call

安全帽收到指挥中心发出视频通话指令

The safety helmet received a video call instruction from the command center.

1. 安全帽通过扬声器发出提示音

1. The safety helmet emits a warning sound through a speaker.

2. 指挥中心可以看见现场情况并进行实时通话

2. The command center can view the situation on-site and conduct real-time communication.

3. 直至指挥中心挂断通话

3. This continues until the command center hangs up.

紧急呼叫

Emergency call

用户短按SOS按键

User briefly presses the SOS button

1. 安全帽通过扬声器发出提示音

1. The safety helmet emits a warning sound through its speaker.

2. 安全帽呼叫指挥中心并进行实时视频通话

2. The safety helmet contacts the command center and initiates a real-time video call.

3. 直至指挥中心挂断通话

3. This continues until the command center hangs up.
