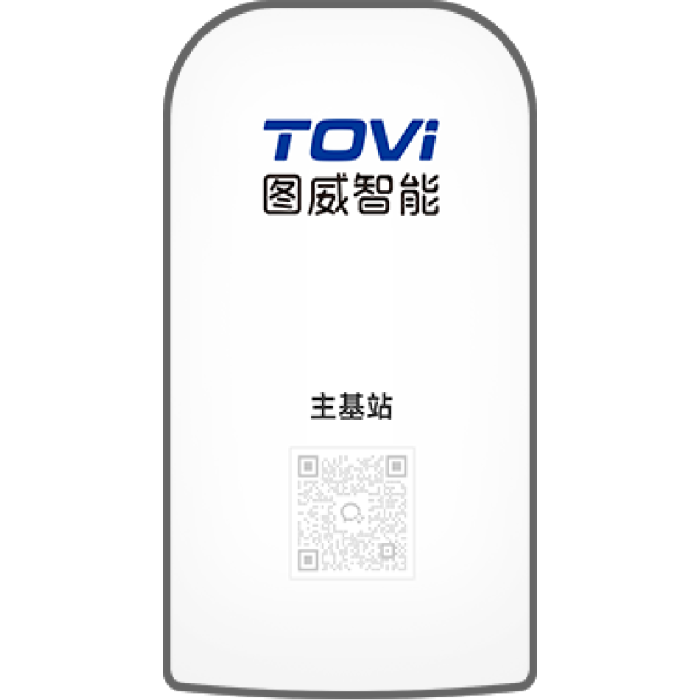

| 多模基站基本参数 Basic parameters for Personnel safety main base station | |||
| 品牌Brand | TOVI图威 | ||
| 型号Model | TV-DWBS01 | ||
| 材质Material | ABS | ||
| 颜色Color | 白色/ White | ||
| 尺寸（L*W*H）Measurements | 189.13*109.07*39.85mm | ||
| 防护等级 Protection level | 可户外使用/IP65 (Allowed to be used outdoors) | ||
| 电池Battery | 1500mAh (备用电池 spare battery) | ||
| 供电方式 Power supply method | POE 30W | ||
| LED | 三色状态灯 Tri color status light | ||
| 复位 Reset | 支持 Availale | ||
| OTA | 支持 Availale | ||
| GPS | 支持 Availale | ||
| 安装方式 installation method | 螺丝/扎带 Screws/ Zip ties | ||
| 技术参数 Technical parameters | |||
| CPU | Dual-Core CPU | ||
| NPU | 1.5 TOPS | ||
| 内存 RAM | 512M | ||
| 存储 Storage | 8G | ||
| 工作频段 Operating frequency band | 2.4G三路收发可配置 2.4G three-way transmitter and receiver configurable | ||
| 传输方式 Transmission method | 移动运营商网络、WiFi、以太网 Mobile operator networks, WiFi, Ethernet | ||
| 传输协议 Transmission protocol | TCP/HTTP/MQTT/UDP | ||
| 传输距离 Transmission distance | 100米 meters | ||
| 传输极限距离 Transmission limit distance | 280米（空旷环境）280meters (open environment) | ||
| 主要功能 Main functions | |||
| 3路2.4G扫描,支持移动运营商网络/WiFi/以太网等多模网络，可级联组网、断电续航2小时、离线存储续传。3-channel 2.4G scanning, supports multi-mode networks such as mobile operator networks/WiFi/Ethernet, can be cascaded into a network, 2-hour power outage, able to continue offline storage and transmission. | |||
